The Effects of Task-Oriented Circuit Training Using Rehabilitation Tools on the Upper-Extremity Functions and Daily Activities of Patients with Acute Stroke: A Randomized Controlled Pilot Trial

Jong-Hoon Moon; Kyoung-Young Park; Hee-Jin Kim; Chang-Ho Na

doi:10.24171/j.phrp.2018.9.5.03

Osong Public Health Res Perspect > Volume 9(5); 2018 > Article

Moon, Park, Kim, and Na: The Effects of Task-Oriented Circuit Training Using Rehabilitation Tools on the Upper-Extremity Functions and Daily Activities of Patients with Acute Stroke: A Randomized Controlled Pilot Trial

Original Article

Osong Public Health and Research Perspectives 2018; 9(5): 225-230.

DOI: https://doi.org/10.24171/j.phrp.2018.9.5.03

The Effects of Task-Oriented Circuit Training Using Rehabilitation Tools on the Upper-Extremity Functions and Daily Activities of Patients with Acute Stroke: A Randomized Controlled Pilot Trial

Jong-Hoon Moon^a, Kyoung-Young Park^b,^*, Hee-Jin Kim^c, Chang-Ho Na^c

^aDepartment of Rehabilitation Standard and Policy, National Rehabilitation Center, National Rehabilitation Research Institute, Seoul, Korea

^bDepartment of Occupational Therapy, Jungwon University, Geosan, Korea

^cDepartment of Occupational Therapy, Glory Rehabilitation Hospital, Incheon, Korea

^*Corresponding author: Kyoung-Young Park, Department of Occupational Therapy, Jungwon University, Geosan, Korea, E-mail: reliance80@jwu.ac.kr

Received: June 13, 2018 Revised: August 15, 2018 Accepted: August 20, 2018

(open-access, http://creativecommons.org/licenses/by-nc-nd/4.0/):

This is an open access article under the CC BY-NC-ND license (http://creativecommons.org/licenses/by-nc-nd/4.0/)

Abstract

Objectives

The purpose of this study was to investigate the effect of task-oriented circuit training (TOCT) using the rehabilitation tools for upper extremity function upon the daily life of patients with acute stroke.

Methods

Eighteen patients with acute stroke were randomly allocated into either the experimental group or the control group. The experimental group performed the TOCT program using rehabilitation tools, whilst the control group had neuro-developmental treatment. Both groups received 30 minutes of treatment per session, 5~6 times per week, for 4 weeks. The assessments conducted were the Fugl-Meyer assessment, motor activity log and stroke impact scale to compare the upper extremity function and activities of daily living.

Results

The results showed a significant improvement in the TOCT group compared with the neuro-developmental treatment group in the amount of motor activity use and high stroke impact score, indicating recovery (p < 0.05).

Conclusion

The TOCT program using rehabilitation tools could have a positive impact on acute stroke patients use of their upper extremity.

KeyWords: rehabilitation tools; stroke; circuit training; upper extremity

Introduction

Stroke is characterized by neurological deficits resulting from cerebrovascular damage and causes neurological problems such as cognitive, motor and sensory, speech and language, and emotional disorders. These problems limit participation in daily activities after a stroke and cause major life changes [1]. The earlier rehabilitation occurs the better the prognosis for the acute stroke patient [2]. The patient’s neurological condition will dictate an appropriate intervention [3] which may be constraint-induced movement therapy, mirror therapy, motor imagery training, task-oriented training (TOT), and biofeedback for the function of upper extremities [4–8]. Task-oriented training is a clinical therapeutic approach based on rehabilitation science and is grounded in the principles of motor learning, motor control, and neuroplasticity. It enables patients with functional disabilities to self-motivate; they select and perform various tasks and practice them accordingly [9]. This intervention is referred to using various terms, including task-based, task-related, activity-based, goal-oriented, and task-specific training [1]. Circuit training is a training method that controls the intensity of training systematically and gradually as an intervention to help the repeated training of a larger number of tasks [10]. Many studies have found circuit training to be effective at improving lower extremity functions in patients after chronic stroke [10–12]. Occupational therapists have assigned such training to suit the functional characteristics of upper-extremity movement patterns [13]. They have also used rehabilitation tools in TOT for many decades [14–16] but the effects of task-oriented circuit training (TOCT) on upper extremity functions and activities of daily living (ADL) have not yet been clearly identified, and studies on its effects on acute stroke patients are limited. In addition, few studies have examined the use of rehabilitation tools in TOCT. Therefore, the purpose of this study was to investigate the effects of TOCT using rehabilitation tools on upper extremity functions and ADL in acute stroke patients.

Materials and Methods

1. Participants

Eighteen subjects were recruited and consented to participate in the study. The subjects were from two different hospitals in South Korea, one located in Incheon and one in Bucheon. The inclusion criteria were as follows: (1) acute stroke patients who developed their condition within the past 30 days and were confirmed to have hemiparesis due to cerebral infarction; (2) those who scored 24 points or above in the Mini-Mental State Examination Korean version, and could understand instructions; (3) those who did not have serious joint contracture, or musculoskeletal pain or fracture; (4) those whose Brunnstrom recovery stage in the proximal and distal regions of the affected upper extremities was 3 or below; and (5) those who had sufficient endurance to engage in 30 minute training sessions. The exclusion criteria were as follows: (1) those who had cognitive disorders such as neglect and apraxia; (2) those who had retrograde conditions such as dementia; and (3) those who had serious depression. All participants were informed of the aim of the study and signed an informed consent form. The study was approved by the Jungwon University Ethics Committee for Human Investigations before patient participation (1044297-HR-201610-013-01).

2. Measurements

2.1. Fugl-Meyer assessment of the upper extremity

The Fugl-Meyer assessment of the upper extremity (FMA-UE) is used to test the degree of functional recovery in the upper extremity function of stroke patients [17,18]. The maximum score of the FMA-UE is 66 and the rating is based on direct observation of the motor performance at each item using a 3-point ordinal scale (0 = cannot perform, 1 = performs partially, and 2 = performs fully). In the FMA-UE, the inter-rater and intra-rater reliability is 0.97 [19].

2.2. Motor activity log

The motor activity log (MAL) is a semi-structured, interview-based measuring method that measures 30 daily activities to identify the degree of independence in the affected upper extremity [20,21]. Performance of each activity is measured by determining the amount of use and the quality of movement. Both the amount of use and the quality of movement are based on a scale of 0 to 5. For the amount of use, 0 indicates “not using at all” and 5 indicates “using the affected side as often as before the occurrence of the disease.” For the quality of movement, 0 indicates “not being able to use the affected side during activities” and 5 indicates “being able to use the affected side as much as before the occurrence of the disease.” The MAL-14 item version was used for this study. The MAL is a testing tool with high levels of reliability; the internal consistency is 0.88–0.95, the inter-rater reliability is 0.90, and the test-retest reliability is 0.94 [22].

2.3. Stroke impact scale

The stroke impact scale (SIS) is a self-perception measuring tool based on a 5-point scale. The SIS is comprised of 64 items in the 8 areas of muscular strength, memory and thinking, feeling and emotion, communication, basic daily activities and instrumental daily activities, movability, hand function, and social participation. The total score ranges from 0 to 100, with 0 indicating “having not recovered at all” and 100 indicating “having recovered to the fullest.” Using the SIS Korean 3.0 version, the 4 domains (strength, hand function, ADL, stroke recovery) were assessed according to the purpose of the study. The inter-rater reliability was 0.570 in strength, 0.635 in hand function, 0.595 in ADL, and 0.527 in stroke recovery [23].

3. Procedures

Eighteen subjects were selected according to the study’s selection criteria, and the methods and procedures were explained to them before starting the experiment. After a preliminary evaluation to identify their present functional levels, subjects were randomly assigned to either an experimental group for TOCT, or a control group for neurodevelopmental treatment (NDT). Both groups participated in training sessions for 30 minutes a day, 5 to 6 days per week, over a period of 4 weeks, for a total of 22–24 sessions.

There were 6 rehabilitation tools (putty, skate, incline board, stacking cone, range of motion arc, ring) selected which are used widely in occupational therapy [24]. TOCT included 6 different tasks in which subjects performed for 5 minutes in each task in a circular manner. Each task was based on 4 levels of difficulty and the therapist provided a task fit for the subject’s ability level. The guidelines required that tasks should be easily performable in a clinical environment, and that training should aim for active movements, induce the suppression of compensatory movements, gradually increase in speed and frequency, encourage the subject to make further efforts, and increase the difficulty level when a subject’s function improves [25].

The control group underwent NDT to improve the functions of the trunk and upper extremities. NDT aims not only to improve muscle tone and reflexive and abnormal movement patterns and postures, but also to normalize sensorimotor elements such as sense, perception, and memory [1]. In this study, the NDT group performed its training without using tools under the guidance of therapists. The intervention consisted of a preliminary exercise for 10 minutes and an NDT-based manual exercise for 20 minutes [26].

4. Statistical analysis

The data were analyzed using SPSS ver. 18.0 (SPSS Inc., Chicago, IL, USA). For descriptive statistics, Chi-square test and Mann-Whitney U test were performed. Wilcoxon signed rank test was performed to compare the FMA, MAL, and SIS scores of the 2 groups. The statistical significance level was set at α = 0.05.

Results

The experimental and control groups did not show statistically significant differences in age, gender, education level, affected side, dominant hand, damaged location, disease duration, MMSE score, and clinical experience of therapists (p > 0.05). The subjects’ general characteristics are shown in Table 1. Comparing the number of treatment sessions between the 2 groups also did not show statistically significant differences.

Each group exhibited statistically significant improvements in FMA, MAL, and SIS scores for all except “using the spoon & chopsticks” in the control group (p < 0.05). The TOCT group achieved statistically significant improvement in the MAL, arm and grip strengths on the affected side, and “using the spoon & chopsticks” in the SIS, when compared to the control group [p < 0.05 (Table 2, 3)].

Discussion

This study was conducted to confirm the effects of a TOCT program using rehabilitation tools on upper-extremity functions and daily activities of stroke patients. The results showed that both TOCT and NDT can improve stroke patients’ use of upper extremities in the acute phase, but that TOCT led to an overall higher level of improvement than NDT in functional recovery.

Jang et al reported that the specificity, duration, and frequency of tasks brought statistically significant changes in the recovery of the upper extremities and neural reorganization in stroke patients [27].

In the present study, repetitive training of the upper extremities through TOCT had positive effects on patients’ recovery and neural reorganization. However, the NDT group focused on normalizing muscle tone and supporting the affected side, so they achieved a comparatively lower level of functional recovery than the TOCT group. The NDT group showed statistically significant differences in the “using the spoon & chopsticks” item of SIS. This is probably because the control group has a greater number of patients with paralysis in the non-dominant (left) hand. The results are similar to the previous study which reported that circuit training showed significant improvements on lower-extremity motor control, balance, gait endurance and daily activities when compared to the NDT group in subacute stroke inpatients [28]. Also, other studies reported TOCT also had a positive effect on mobility and upper limb functions in acute and chronic stroke patients [29,30]. These findings suggest that TOCT is effective in improving functional outcomes during stroke rehabilitation.

This study has some limitations. Firstly, simple exercises were conducted using rehabilitation tools, not ADL tasks. Some improvement was seen in SIS scores, but changes in ADL task abilities were not examined. Secondly, the affected side was not controlled between the 2 groups before the intervention. Because of the difference in the affected side, the 2 groups showed significantly different results in the SIS task of “using the spoon & chopsticks” before the intervention. This may have been due to the small sample size. Thirdly, patients with acute stroke can have spontaneous recovery, so therapists should apply TOCT according to functional recovery. Future studies should target chronic stroke patients, and long-term follow-up studies should involve a larger number of subjects to generalize the research results.

Acknowledgments

This work was supported by the Jungwon University Research Grant (Code: 2016-052).

Notes

Conflicts of Interest

No potential conflicts of interest relevant to this article was reported.

References

1. Trombly CA, Radomski MV. Occupational therapy for physical dysfunction, 6th ed Baltimore (MD): Lippincott Williams & Wilkins; 2008. pp 1432,

2. Novack TA, Satterfield WT, Lyons K, et al. Stroke onset and rehabilitation: time lag as a factor in treatment outcome. Arch Phys Med Rehabil 1984;65(6):316-9.

3. Musicco M, Emberti L, Nappi G, et al. Italian Multicenter Study on Outcomes of Rehabilitation of Neurological Patients. Early and long-term outcome of rehabilitation in stroke patients: the role of patient characteristics, time of initiation, and duration of interventions. Arch Phys Med Rehabil 2003;84(4):551-8.

4. Kwakkel G, Veerbeek JM, van Wegen EE, et al. Constraint-induced movement therapy after stroke. Lancet Neurol 2015;14(2):224-34.

5. Ng MJ, Singh P, Pandian JD, et al. Mirror therapy in unilateral neglect after stroke (MUST trial): A randomized controlled trial. Neurology 2015;84(12):1286.

6. Grabherr L, Jola C, Berra G, et al. Motor imagery training improves precision of an upper limb movement in patients with hemiparesis. Neuro Rehabilitation 2015;36(2):157-66.

7. da Silva PB, Antunes FN, Graef P, et al. Strength Training Associated with Task Oriented Training to Enhance Upper-Limb Motor Function in Elderly Patients with Mild Impairment After Stroke: A Randomized Controlled Trial. Am J Phys Med Rehabil 2015;94(1):11-9.

8. Pollock A, Farmer SE, Brady MC, et al. Interventions for improving upper limb function after stroke. Cochrane Database Syst Rev 2014;12(11):CD010820,

9. Shumway-Cook A, Woollacott MH. Motor control, 5th ed Philadelphia (PA): Lippincott Williams & Wilkins; 2016. pp 680,

10. Rose D, Paris T, Crews E, et al. Feasibility and effectiveness of circuit training in acute stroke rehabilitation. Neurorehabil Neural Repair 2011;25(2):140-8.

11. Salbach NM, Mayo NE, Wood-Dauphinee S, et al. A task-orientated intervention enhances walking distance and speed in the first-year post stroke: a randomized controlled trial. Clin Rehabil 2004;18(5):509-19.

12. Mudge S, Barber PA, Stott NS. Circuit-based rehabilitation improves gait endurance but not usual walking activity in chronic stroke: a randomized controlled trial. Arch Phys Med Rehabil 2009;90(12):1989-96.

13. Winstein CJ, Rose DK, Tan SM, et al. A randomized controlled comparison of upper-extremity rehabilitation strategies in acute stroke: a pilot study of immediate and long-term outcomes. Arch Phys Med Rehabil 2004;85(4):620-8.

14. Steinbeck TM. Purposeful activity and performance. Am J Occup Ther 1986;40(8):529-34.

15. Bakshi R, Bhambhani Y, Madill H. The effects of task preference on performance during purposeful and non-purposeful activities. Am J Occup Ther 1991;45(10):912-6.

16. Hinojosa J, Kramer P. Statement-fundamental concepts of occupational therapy: occupation, purposeful activity, and function. Am J Occup Ther 1996;51(10):864-6.

17. Fugl-Meyer AR, Jääskö L, Leyman I, et al. The post-stroke hemplegic patient. 1. A method for evaluation of physical performance. Scand J Rehabil Med 1975;7(1):13-31.

18. Mathiowetz V, Bass-Haugen J. Assessing abilities and capacities: Motor behavior. Edited by Trombly CA, Radomski MV. Occupational therapy for physical dysfunction, 6th ed Baltimore: Lippincott, Williams & Wilkins; 2002. pp 187-211.

19. Sanford J, Moreland J, Swanson LR, et al. Reliability of the Fugl-Meyer Assessment for testing motor performance in patients following stroke. Phys Ther 1993;73(7):447-54.

20. van der Lee JH, Beckerman H, Knol DL, et al. Clinimetric properties of the motor activity log for the assessment of arm use in hemiparetic patients. Stroke 2004;35(6):1410-14.

21. Uswatte G, Taub E, Morris D, et al. The Motor Activity Log-28: Assessing daily use of the hemiparetic arm after stroke. Neurology 2006;67(7):1189-94.

22. Uswatte G, Taub E, Morris D, et al. Reliability and validity of the upper-extremity Motor Activity Log-14 for measuring real-world arm use. Stroke 2005;36(11):2493-6.

23. Choi SU, Lee HS, Shin JH, et al. Stroke Impact Scale 3.0: Reliability and Validity Evaluation of the Korean Version. Ann Rehabil Med 2017;41(3):387-93.

24. Moon JH, Na CH, Park KY, et al. A Pilot Investigation for usage Problems, Improvement Needs and Current Status of Upper Extremity Rehabilitation Equipment using SNS. J Korea Inst Electron Commun Sci 2018;13(2):463-72. [in Korean].

25. Arya KN, Verma R, Garg RK, et al. Meaningful task-specific training (MTST) for stroke rehabilitation: a randomized controlled trial. Top Stroke Rehabil 2012;19(3):193-211.

26. Ryerson S, Levit K. Functional movement reeducation: A contemporary model for stroke rehabilitation London (UK): Churchill Livingston; 1997. pp 495,

27. Jang SH, Kim YH, Cho SH, et al. Cortical reorganization induced by task-oriented training in chronic hemiplegic stroke patients. Neuro report 2003;14(1):137-41.

28. Kim SM, Han EY, Kim BR, et al. Clinical application of circuit training for subacute stroke patients: a preliminary study. J Phys Ther Sci 2016;28(1):169-74.

29. Kim K, Jung SI, Lee DK. Effects of task-oriented circuit training on balance and gait ability in subacutestroke patients: a randomized controlled trial. J Phys Ther Sci 2017;29(6):989-92.

30. Blennerhassett J, Dite W. Additional task-related practice improves mobility and upper limb function early after stroke: a randomised controlled trial. Aust J Physiother 2004;50(4):219-24.

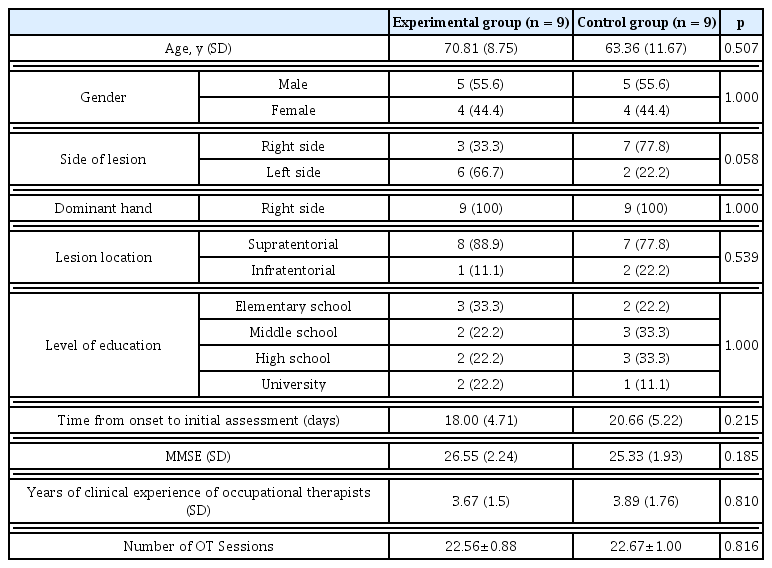

Table 1

The general characteristics of the subjects.

		Experimental group (n = 9)	Control group (n = 9)	p
Age, y (SD)		70.81 (8.75)	63.36 (11.67)	0.507

Gender	Male	5 (55.6)	5 (55.6)	1.000
Gender	Female	4 (44.4)	4 (44.4)	1.000

Side of lesion	Right side	3 (33.3)	7 (77.8)	0.058
Side of lesion	Left side	6 (66.7)	2 (22.2)	0.058

Dominant hand	Right side	9 (100)	9 (100)	1.000

Lesion location	Supratentorial	8 (88.9)	7 (77.8)	0.539
Lesion location	Infratentorial	1 (11.1)	2 (22.2)	0.539

Level of education	Elementary school	3 (33.3)	2 (22.2)	1.000
	Middle school	2 (22.2)	3 (33.3)
	High school	2 (22.2)	3 (33.3)
	University	2 (22.2)	1 (11.1)

Time from onset to initial assessment (days)		18.00 (4.71)	20.66 (5.22)	0.215

MMSE (SD)		26.55 (2.24)	25.33 (1.93)	0.185

Years of clinical experience of occupational therapists (SD)		3.67 (1.5)	3.89 (1.76)	0.810

Number of OT Sessions		22.56±0.88	22.67±1.00	0.816

Data are presented as n (%) or mean ± SD.

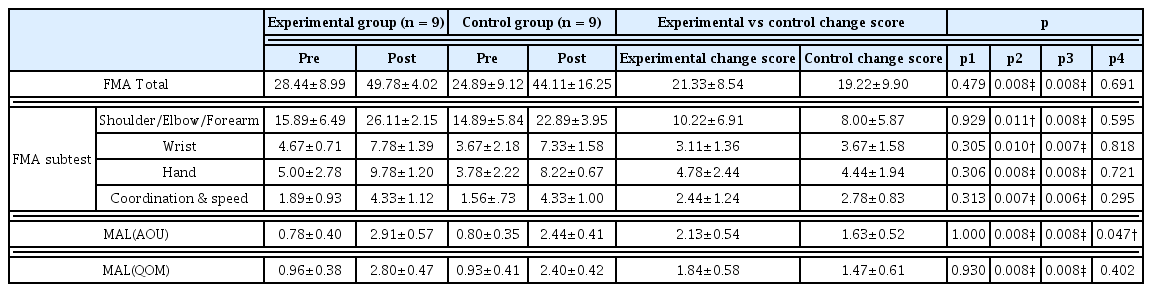

Table 2

Comparison of upper extremity functions (FMA, MAL) for two groups.

		Experimental group (n = 9)		Control group (n = 9)		Experimental vs control change score		p

		Pre	Post	Pre	Post	Experimental change score	Control change score	p1	p2	p3	p4
FMA Total		28.44±8.99	49.78±4.02	24.89±9.12	44.11±16.25	21.33±8.54	19.22±9.90	0.479	0.008‡	0.008‡	0.691

FMA subtest	Shoulder/Elbow/Forearm	15.89±6.49	26.11±2.15	14.89±5.84	22.89±3.95	10.22±6.91	8.00±5.87	0.929	0.011†	0.008‡	0.595
	Wrist	4.67±0.71	7.78±1.39	3.67±2.18	7.33±1.58	3.11±1.36	3.67±1.58	0.305	0.010†	0.007‡	0.818
	Hand	5.00±2.78	9.78±1.20	3.78±2.22	8.22±0.67	4.78±2.44	4.44±1.94	0.306	0.008‡	0.008‡	0.721
	Coordination & speed	1.89±0.93	4.33±1.12	1.56±.73	4.33±1.00	2.44±1.24	2.78±0.83	0.313	0.007‡	0.006‡	0.295

MAL(AOU)		0.78±0.40	2.91±0.57	0.80±0.35	2.44±0.41	2.13±0.54	1.63±0.52	1.000	0.008‡	0.008‡	0.047†

MAL(QOM)		0.96±0.38	2.80±0.47	0.93±0.41	2.40±0.42	1.84±0.58	1.47±0.61	0.930	0.008‡	0.008‡	0.402

Values are presented as mean ± SD.

^† p < .05;

^‡ p < .01.

p1 = differences at baseline; p2 = differences pre/post measures for experimental group; p3 = differences pre/post measures for control group; p4 = differences change score between experimental and control group; OT = occupational therapy; FMA = fugl-meyer assessment; MAL = motor activity log; AOU = amount of use; QOM = quality of movement.

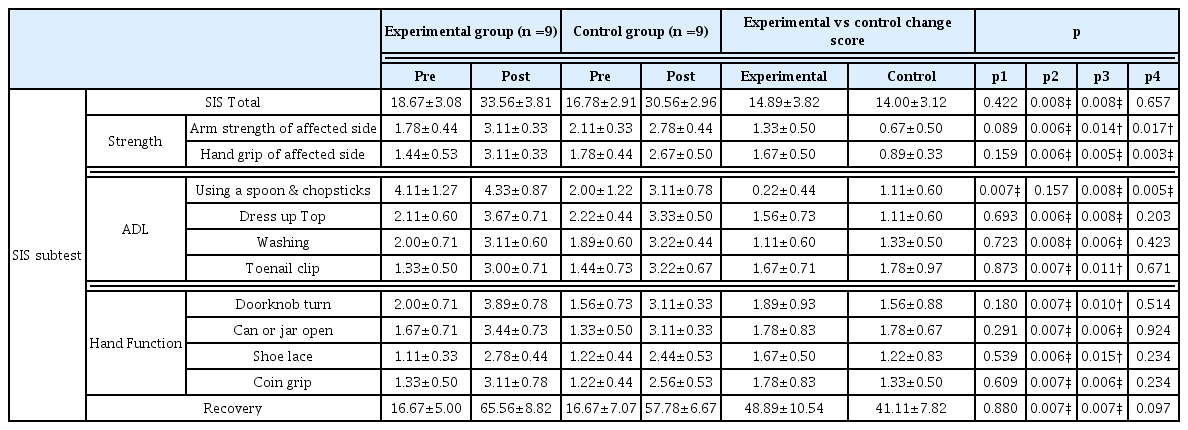

Table 3

Comparison of stroke impact scale for two groups.

			Experimental group (n =9)		Control group (n =9)		Experimental vs control change score		p

			Pre	Post	Pre	Post	Experimental	Control	p1	p2	p3	p4
SIS subtest	SIS Total		18.67±3.08	33.56±3.81	16.78±2.91	30.56±2.96	14.89±3.82	14.00±3.12	0.422	0.008‡	0.008‡	0.657
	Strength	Arm strength of affected side	1.78±0.44	3.11±0.33	2.11±0.33	2.78±0.44	1.33±0.50	0.67±0.50	0.089	0.006‡	0.014†	0.017†
	Strength	Hand grip of affected side	1.44±0.53	3.11±0.33	1.78±0.44	2.67±0.50	1.67±0.50	0.89±0.33	0.159	0.006‡	0.005‡	0.003‡

	ADL	Using a spoon & chopsticks	4.11±1.27	4.33±0.87	2.00±1.22	3.11±0.78	0.22±0.44	1.11±0.60	0.007‡	0.157	0.008‡	0.005‡
		Dress up Top	2.11±0.60	3.67±0.71	2.22±0.44	3.33±0.50	1.56±0.73	1.11±0.60	0.693	0.006‡	0.008‡	0.203
		Washing	2.00±0.71	3.11±0.60	1.89±0.60	3.22±0.44	1.11±0.60	1.33±0.50	0.723	0.008‡	0.006‡	0.423
		Toenail clip	1.33±0.50	3.00±0.71	1.44±0.73	3.22±0.67	1.67±0.71	1.78±0.97	0.873	0.007‡	0.011†	0.671

	Hand Function	Doorknob turn	2.00±0.71	3.89±0.78	1.56±0.73	3.11±0.33	1.89±0.93	1.56±0.88	0.180	0.007‡	0.010†	0.514
		Can or jar open	1.67±0.71	3.44±0.73	1.33±0.50	3.11±0.33	1.78±0.83	1.78±0.67	0.291	0.007‡	0.006‡	0.924
		Shoe lace	1.11±0.33	2.78±0.44	1.22±0.44	2.44±0.53	1.67±0.50	1.22±0.83	0.539	0.006‡	0.015†	0.234
		Coin grip	1.33±0.50	3.11±0.78	1.22±0.44	2.56±0.53	1.78±0.83	1.33±0.50	0.609	0.007‡	0.006‡	0.234
	Recovery		16.67±5.00	65.56±8.82	16.67±7.07	57.78±6.67	48.89±10.54	41.11±7.82	0.880	0.007‡	0.007‡	0.097

Data are presented as mean ± SD.

^† p < .05;

^‡ p < .01.

p1 = differences at baseline; p2 = differences pre/post measures for experimental group; p3 = differences pre/post measures for control group; p4 = differences change score between experimental and control group; SIS = stroke impact scale; ADL = activities of daily living.
